Why Motion Dimming Is a Specification, Not a Feature
Almost every solar street light on the market now claims a motion sensor, and almost none of them mean the same thing. Two quotations can both read "motion sensor" and still describe systems that behave differently on the same road at two in the morning.
This guide is written for the people who specify, approve and hand over solar lighting: EPC contractors, distributors, municipal engineers and facility owners. It explains what the sensor actually detects, how a dimming profile is structured, which values to fix in writing before you order, and how to verify the result on site at handover.
What the Sensor Actually Detects: PIR, Microwave and Dual Technology
Three sensing technologies dominate solar street lighting, and they behave differently in the field. Passive infrared, or PIR, reads changes in heat moving across its field of view. Microwave or radar sensing emits a low-power signal and reads the Doppler shift of movement, including movement it cannot see. Dual-technology units require both to agree before triggering.
Each has a characteristic failure mode. A PIR sensor cannot see a stationary person, and its contrast falls as ambient temperature rises, which matters in hot climates where a person's surface temperature and the background converge. Microwave sensing is not affected by heat but will trigger on moving foliage, sheet rain and passing traffic if the detection pattern and range are not set. Dual-technology units trade a slower trigger for far fewer false activations, and they cost more.

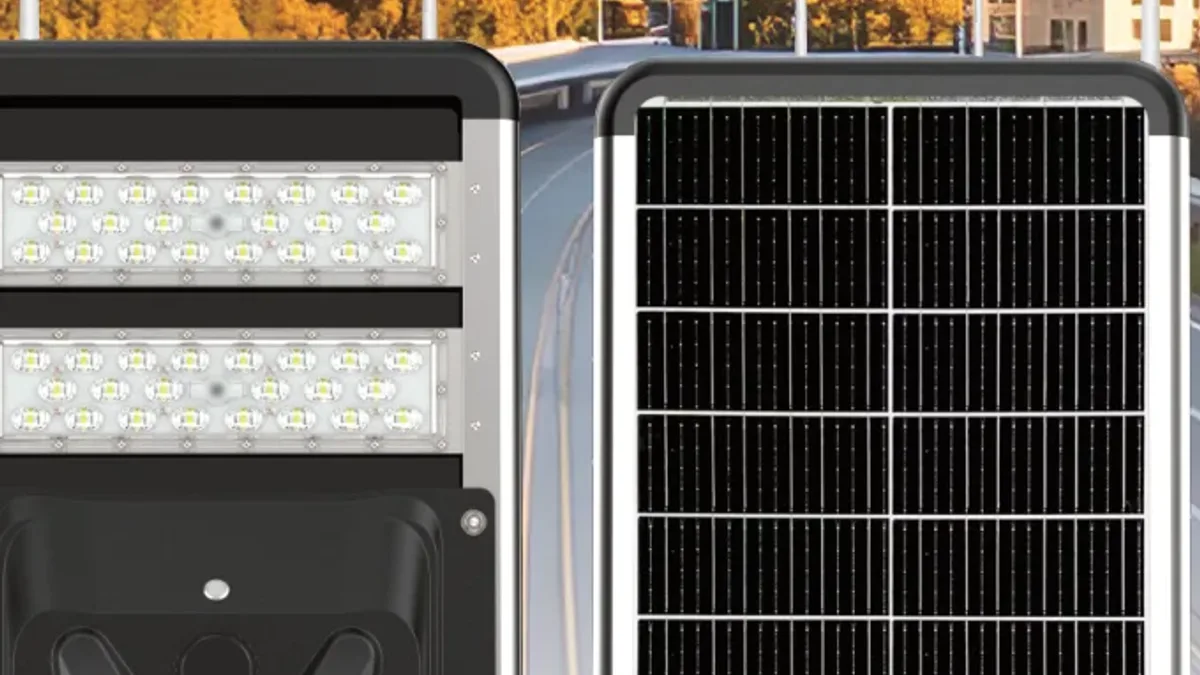

VOLTIC publishes human presence detection as part of its MPPT controller specification, alongside light control and timer control, and lists the presence sensor as an optional item on the ZHENYE SERIES integrated luminaires. The sensing technology, detection range and detection angle behind that option are model-specific. Ask for all three in the quotation rather than assuming a sensor is a sensor.
The Dimming Profile: The Part of the Datasheet Buyers Skip
A dimming profile is a timetable. It divides the night into blocks and fixes two output levels for each block: one for when the sensor has detected a person or vehicle, and one for when it has not. That second number, the standby level, decides how much energy the fixture uses between events.
The standby level is also the value most often missing from a quotation. VOLTIC publishes one ladder across its integrated street light range — the 100W, 150W, 200W and 300W models — and a separate single-step profile on its parking lot luminaire. The table below reproduces both as they leave the factory.
| Hours after dusk | Output with people or vehicles present | Standby output, no presence |
|---|---|---|
| Hours 1 to 4 | 100% | 50% |
| Hours 5 to 8 | 70% | 40% |
| Hours 9 to 12 | 60% | 30% |
| Parking lot luminaire, all night | 30% standby | |
Read the ladder as a specification rather than a claim. The fixture is not at rated output for twelve hours, and it does not increase output when nobody is present. Two suppliers offering the same wattage and the same battery can therefore deliver completely different quantities of light, which is why the profile belongs in the quotation next to the lumen figure.
Standby Level vs Lighting Class: Why 30 Percent Is a Decision
The standby level is not only an energy setting, it is a lighting decision. Many road projects are designed to a class under a national or international standard, such as EN 13201 in Europe or IES RP-8 in North America, and that class sets a minimum maintained illuminance on the carriageway.
A standby step that drops below that minimum puts the road out of compliance for most of the night. Ask the supplier for the illuminance the fixture delivers at standby, at your pole height and spacing, then have the designer confirm the class still holds with that reduced output. If it does not, the correct fix is usually a higher standby percentage or a taller-output model, not a different sensor. Dimming is only free energy saving when the reduced level still satisfies the lighting requirement you were given.
This is also where motion dimming and continuous operation stop being a matter of taste. A road that must stay continuously lit at the class level needs a system sized for that duty, with standby used as an additional saving rather than the primary strategy.
What the Profile Does to the Night's Energy Demand
Energy demand can be compared before any watt-hour figure is quoted, because the profile is expressed in percentages. Treat twelve hours at full output as 1,200 percent-hours, then multiply each block by its level. The arithmetic is simple to reproduce and exposes two very different numbers.
- Full output, no dimming: 12 hours x 100% = 1,200 percent-hours per night.
- Published ladder, standby column only (nobody detected all night): (4 x 50) + (4 x 40) + (4 x 30) = 480 percent-hours, a 60% reduction against full output.
- Published ladder, presence column (constant activity): (4 x 100) + (4 x 70) + (4 x 60) = 920 percent-hours, a 23% reduction.
Those percentages are taken directly from the published profile. Turning them into watt-hours requires the model's input power and controller losses, which is why a factory-confirmed autonomy figure in days, quoted at a named profile, is worth more than a rated "12 hours" claim. The measurement method and the arithmetic behind autonomy are covered in our guide to dusk-to-dawn solar lighting.
Hold Time, Sensitivity and Detection Range: The Three Values to Fix
Once the profile is agreed, three settings decide how the system feels to a driver or a pedestrian. Hold time is how long the fixture stays at the higher output after the last detection. Sensitivity and detection range govern how far and how small a movement will trigger it. Left as factory defaults, all three are a guess.
Hold time that is too short produces visible flicker as a vehicle passes between detection zones, and it is a common complaint on long straight roads where luminaires dim while traffic is still within sight. Too long, and a single late-night pedestrian keeps a quiet street at higher output for minutes at a time. For most road applications, a hold time in the order of 30 to 60 seconds after the last detection is the range worth specifying, and it should be a number in the document, not a factory default.
Detection range and angle need to match how the pole is mounted. A sensor aimed at the carriageway will trigger on every passing vehicle and can hold the light up all night; a sensor aimed too tightly at the footway will miss cyclists. Ask how the pattern is set on the model you are buying, whether the range is adjustable in the field, and with what tool.
How to Write Motion Dimming Into a Specification
A motion clause fails when it is written as a feature rather than as values. The list below is the wording that lets you compare bids and hold a supplier to an outcome, and it works whether you are buying integrated or split-type fixtures.
- Sensor technology. State whether PIR, microwave or dual-technology sensing is acceptable, and require the manufacturer to declare which is used.
- Detection range and angle. Give the detection distance and the horizontal and vertical coverage required at the specified mounting height.
- Standby level. Specify the minimum continuous output as a percentage and, where a lighting class applies, the maintained illuminance that must be met at that level.
- Presence level. Specify the output on detection, normally 100%, and the time to reach it.
- Hold time. Specify the time at presence level after the last detection, with a tolerance, and require it to be field-adjustable.
- Profile blocks. Write the timetable hour by hour, with the output for each block in both the presence and standby states.
- Autonomy. Require the number of consecutive low-sun days supported at the stated profile, in days, and state the assumed daily sun hours.
- Verification. Require a night test at commissioning that records the standby level, the trigger, and the hold time, and make the record part of handover.
Two of these clauses are regularly omitted: the standby illuminance and the autonomy window. Without the first, nobody can prove the road still meets its class after midnight. Without the second, the profile and the battery are never tested against a bad week of weather. The controller that runs all of this is covered in our guide to MPPT and PWM solar charge controllers.
Commissioning: Four Checks Before You Sign Off
Motion dimming is easy to accept on paper and easy to get wrong on site, because it only works at night. Four checks, run on the first evening after installation, catch almost every error before the project closes and before the battery capacity is judged.
- Standby level. Stand outside the detection zone and confirm the light is at standby, not off and not at full output. Note the level against the specification.
- Trigger. Walk or drive through the detection zone along the direction the road carries traffic and confirm the light steps up. Check the coverage at the far end of the pole spacing, where detection is weakest.
- Hold time. Time how long the output stays raised after you leave the zone, and compare it with the specified value.
- False triggers. Watch for ten minutes with no traffic. Triggers from foliage, rain or adjacent movement mean the detection range or pattern needs adjusting, or the profile will be ignored by the controller all night.
Record the four results per pole type, not per pole. If a route is failing, it is almost always a mounting height, an aim, or a setting that was never changed from the factory default.
Spec Mistakes That Turn Into "The Light Is Dim" Complaints
Most reports of a solar street light being dim, or dimming too early, are not faults. They are the published profile working as designed, seen by someone who was never told what the profile was. A light correctly running at 30 percent standby looks broken to an inspector who expected full output all night.
The fix is procedural. Hand the profile to the receiving engineer at handover, alongside the four commissioning records. Where a genuine fault is suspected, the tests that separate a real failure from the intended dimming schedule are set out in our solar street light troubleshooting guide, including the sensor and controller checks and the symptom-to-fault table. Where the expectation itself was wrong, the correction belongs in the specification for the next phase, not in a warranty claim.
Frequently Asked Questions
Does a motion sensor solar street light go completely dark?
It should not, and a design that switches fully off between detections is a safety problem, not a saving. A correctly specified unit holds a standby level all night, so the road keeps a minimum illuminance, and steps to full output when someone is present. VOLTIC publishes its standby levels at 50, 40 and 30 percent across the night rather than switching the luminaire off.
What is the difference between PIR and microwave sensors in solar street lights?
PIR sensing reacts to heat moving across its field of view, is inexpensive and cannot detect a stationary person. Microwave or radar sensing detects movement by reflection and works through some obstructions, but triggers more easily on foliage, rain and passing traffic. Dual-technology sensors require both to agree, which reduces false activations at a higher unit cost.
How much energy does motion dimming actually save?
On the published VOLTIC profile, standby operation across the whole night is 480 percent-hours against 1,200 for twelve hours at full output, a reduction of about 60 percent. If the road is busy and the fixture spends the night at presence level, the same profile gives about 920 percent-hours, a reduction of roughly 23 percent. Real sites fall between the two.
Can I change the dimming profile after installation?
Usually yes, within the ranges the controller supports, and it is worth requiring field adjustability in the specification so the profile can be tuned once real traffic is observed. What can be changed, and with what tool, is controller-specific; ask the manufacturer to confirm before you order rather than after installation.
Will motion dimming still meet my road lighting standard?
It can, if the standby level meets the minimum maintained illuminance your lighting class requires. That has to be checked at the design stage, because a standby step chosen only to save energy can put the road below its class for most of the night. Ask for the standby illuminance at your mounting height and spacing, and confirm it with the lighting designer.
Should I specify a sensor on every pole?
No. Sensors are normally fitted where traffic and footfall are intermittent. On roads with steady night traffic, or where a lighting class demands continuous output, a sensor adds cost without changing the duty. On quiet roads, car parks, campuses and perimeters, the same sensor pays for itself in reduced nightly demand. The unit itself is optional on the ZHENYE SERIES range for exactly this reason.
